iOS多线程

一 常见多线程方案

9aa5-9ddd279cb3f6

二 GCD

2.1 基础术语

同步和异步主要影响:能不能开启新的线程

同步:在当前线程中执行任务,不具备开启新线程的能力

异步:在新线程中执行任务,具备开启新线程的能力

并发和串行的主要影响:任务的执行方式

并发:多个任务并发(同时)执行

串行:一个任务执行完毕后,在执行下一个任务

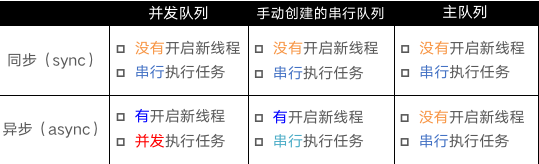

45bc-884b-57e2ca90e830

产生死锁:使用sync函数往当前串行队列中添加任务，会卡住当前的串行队列

2.2常见使用

2.2.1任务+队列

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
/**
 * 同步执行 + 并发队列
 * 特点：在当前线程中执行任务，不会开启新线程，执行完一个任务，再执行下一个任务。
 */
- (void)syncConCurrent{
    NSLog(@"currentThread---%@",[NSThread currentThread]);  // 打印当前线程
    NSLog(@"syncConcurrent---begin");

    dispatch_queue_t queue = dispatch_queue_create("com.hs.queue", DISPATCH_QUEUE_CONCURRENT);
    dispatch_sync(queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"1---%@",[NSThread currentThread]);
        }
    });

    dispatch_sync(queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"2---%@",[NSThread currentThread]);
        }
    });

    dispatch_sync(queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"3---%@",[NSThread currentThread]);
        }
    });
}

输出结果:
2021-02-19 17:36:25.088970+0800 GCD01[2847:134875] currentThread---<NSThread: 0x6000035b0700>{number = 1, name = main}
2021-02-19 17:36:25.089089+0800 GCD01[2847:134875] syncConcurrent---begin
2021-02-19 17:36:27.090291+0800 GCD01[2847:134875] 1---<NSThread: 0x6000035b0700>{number = 1, name = main}
2021-02-19 17:36:29.090881+0800 GCD01[2847:134875] 1---<NSThread: 0x6000035b0700>{number = 1, name = main}
2021-02-19 17:36:31.091210+0800 GCD01[2847:134875] 2---<NSThread: 0x6000035b0700>{number = 1, name = main}
2021-02-19 17:36:33.092106+0800 GCD01[2847:134875] 2---<NSThread: 0x6000035b0700>{number = 1, name = main}
2021-02-19 17:36:35.093407+0800 GCD01[2847:134875] 3---<NSThread: 0x6000035b0700>{number = 1, name = main}
2021-02-19 17:36:37.093798+0800 GCD01[2847:134875] 3---<NSThread: 0x6000035b0700>{number = 1, name = main}


/**
 * 异步执行 + 并发队列
 * 特点：可以开启多个线程，任务交替（同时）执行。
 */
- (void)asyncConcurrent{
    NSLog(@"currentThread---%@",[NSThread currentThread]);  // 打印当前线程
    NSLog(@"asyncConcurrent---begin");

    dispatch_queue_t queue = dispatch_queue_create("com.hs.queue", DISPATCH_QUEUE_CONCURRENT);
    dispatch_async(queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"1---%@",[NSThread currentThread]);
        }
    });

    dispatch_async(queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"2---%@",[NSThread currentThread]);
        }
    });

    dispatch_async(queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"3---%@",[NSThread currentThread]);
        }
    });

    NSLog(@"asyncConcurrent---end");
}

输出结果:
2021-02-19 17:43:09.998795+0800 GCD01[2932:138556] currentThread---<NSThread: 0x600000ffc740>{number = 1, name = main}
2021-02-19 17:43:09.998905+0800 GCD01[2932:138556] asyncConcurrent---begin
2021-02-19 17:43:09.999027+0800 GCD01[2932:138556] asyncConcurrent---end
2021-02-19 17:43:12.004240+0800 GCD01[2932:138746] 1---<NSThread: 0x600000fda9c0>{number = 8, name = (null)}
2021-02-19 17:43:12.004239+0800 GCD01[2932:138757] 2---<NSThread: 0x600000ff25c0>{number = 7, name = (null)}
2021-02-19 17:43:12.004241+0800 GCD01[2932:138747] 3---<NSThread: 0x600000fbc8c0>{number = 5, name = (null)}
2021-02-19 17:43:14.004538+0800 GCD01[2932:138746] 1---<NSThread: 0x600000fda9c0>{number = 8, name = (null)}
2021-02-19 17:43:14.004538+0800 GCD01[2932:138757] 2---<NSThread: 0x600000ff25c0>{number = 7, name = (null)}
2021-02-19 17:43:14.004538+0800 GCD01[2932:138747] 3---<NSThread: 0x600000fbc8c0>{number = 5, name = (null)}

/**
 * 同步执行 + 串行队列
 * 特点：不会开启新线程，在当前线程执行任务。任务是串行的，执行完一个任务，再执行下一个任务。
 */
- (void)syncSerial{
    NSLog(@"currentThread---%@",[NSThread currentThread]);  // 打印当前线程
    NSLog(@"syncSerial---begin");

    dispatch_queue_t queue = dispatch_queue_create("com.hs.queue", DISPATCH_QUEUE_SERIAL);
    dispatch_sync(queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"1---%@",[NSThread currentThread]);
        }
    });

    dispatch_sync(queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"2---%@",[NSThread currentThread]);
        }
    });

    dispatch_sync(queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"3---%@",[NSThread currentThread]);
        }
    });

    NSLog(@"syncSerial---end");
}

输出结果:
2021-02-19 17:46:09.812435+0800 GCD01[2986:140787] currentThread---<NSThread: 0x6000027003c0>{number = 1, name = main}
2021-02-19 17:46:09.812540+0800 GCD01[2986:140787] syncSerial---begin
2021-02-19 17:46:11.812918+0800 GCD01[2986:140787] 1---<NSThread: 0x6000027003c0>{number = 1, name = main}
2021-02-19 17:46:13.813264+0800 GCD01[2986:140787] 1---<NSThread: 0x6000027003c0>{number = 1, name = main}
2021-02-19 17:46:15.814544+0800 GCD01[2986:140787] 2---<NSThread: 0x6000027003c0>{number = 1, name = main}
2021-02-19 17:46:17.814767+0800 GCD01[2986:140787] 2---<NSThread: 0x6000027003c0>{number = 1, name = main}
2021-02-19 17:46:19.815968+0800 GCD01[2986:140787] 3---<NSThread: 0x6000027003c0>{number = 1, name = main}
2021-02-19 17:46:21.816267+0800 GCD01[2986:140787] 3---<NSThread: 0x6000027003c0>{number = 1, name = main}
2021-02-19 17:46:21.816439+0800 GCD01[2986:140787] syncSerial---end

/**
 * 异步执行 + 串行队列
 * 特点：会开启一条新线程，但是因为任务是串行的，执行完一个任务，再执行下一个任务。
 */
- (void)asyncSerial{
    NSLog(@"currentThread---%@",[NSThread currentThread]);  // 打印当前线程
    NSLog(@"asyncSerial---begin");

    dispatch_queue_t queue = dispatch_queue_create("com.hs.queue", DISPATCH_QUEUE_SERIAL);
    dispatch_async(queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"1---%@",[NSThread currentThread]);
        }
    });

    dispatch_async(queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"2---%@",[NSThread currentThread]);
        }
    });

    dispatch_async(queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"3---%@",[NSThread currentThread]);
        }
    });

    NSLog(@"asyncSerial---end");
}

输出结果:
2021-02-19 17:48:48.440422+0800 GCD01[3023:142364] currentThread---<NSThread: 0x6000021843c0>{number = 1, name = main}
2021-02-19 17:48:48.440607+0800 GCD01[3023:142364] asyncSerial---begin
2021-02-19 17:48:48.440731+0800 GCD01[3023:142364] asyncSerial---end
2021-02-19 17:48:50.445911+0800 GCD01[3023:142419] 1---<NSThread: 0x600002199d00>{number = 6, name = (null)}
2021-02-19 17:48:52.451231+0800 GCD01[3023:142419] 1---<NSThread: 0x600002199d00>{number = 6, name = (null)}
2021-02-19 17:48:54.455630+0800 GCD01[3023:142419] 2---<NSThread: 0x600002199d00>{number = 6, name = (null)}
2021-02-19 17:48:56.455855+0800 GCD01[3023:142419] 2---<NSThread: 0x600002199d00>{number = 6, name = (null)}
2021-02-19 17:48:58.461050+0800 GCD01[3023:142419] 3---<NSThread: 0x600002199d00>{number = 6, name = (null)}
2021-02-19 17:49:00.463611+0800 GCD01[3023:142419] 3---<NSThread: 0x600002199d00>{number = 6, name = (null)}

/**
* 同步执行 + 主队列
* 特点(主线程调用)：互相等待,卡住主线程,造成死锁
*/
- (void)syncMain{
    NSLog(@"currentThread---%@",[NSThread currentThread]);  // 打印当前线程
    NSLog(@"syncMain---begin");

    dispatch_queue_t queue = dispatch_get_main_queue();
    dispatch_sync(queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"1---%@",[NSThread currentThread]);
        }
    });

    dispatch_sync(queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"2---%@",[NSThread currentThread]);
        }
    });

    dispatch_sync(queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"3---%@",[NSThread currentThread]);
        }
    });

    NSLog(@"syncMain---end");
}

输出结果:
2021-02-19 17:51:57.239288+0800 GCD01[3047:144140] currentThread---<NSThread: 0x600003c549c0>{number = 1, name = main}
2021-02-19 17:51:57.239399+0800 GCD01[3047:144140] syncMain---begin
(lldb)

/**
 * 异步执行 + 主队列
 * 特点：只在主线程中执行任务，执行完一个任务，再执行下一个任务
 */
- (void)asyncMain{
    NSLog(@"currentThread---%@",[NSThread currentThread]);  // 打印当前线程
    NSLog(@"asyncMain---begin");

    dispatch_queue_t queue = dispatch_get_main_queue();
    dispatch_async(queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"1---%@",[NSThread currentThread]);
        }
    });

    dispatch_async(queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"2---%@",[NSThread currentThread]);
        }
    });

    dispatch_async(queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"3---%@",[NSThread currentThread]);
        }
    });

    NSLog(@"asyncMain---end");
}

输出结果:
2021-02-19 17:57:06.334474+0800 GCD01[3100:147296] currentThread---<NSThread: 0x6000021f4080>{number = 1, name = main}
2021-02-19 17:57:06.334603+0800 GCD01[3100:147296] asyncMain---begin
2021-02-19 17:57:06.334717+0800 GCD01[3100:147296] asyncMain---end
2021-02-19 17:57:08.351357+0800 GCD01[3100:147296] 1---<NSThread: 0x6000021f4080>{number = 1, name = main}
2021-02-19 17:57:10.351767+0800 GCD01[3100:147296] 1---<NSThread: 0x6000021f4080>{number = 1, name = main}
2021-02-19 17:57:12.352891+0800 GCD01[3100:147296] 2---<NSThread: 0x6000021f4080>{number = 1, name = main}
2021-02-19 17:57:14.353229+0800 GCD01[3100:147296] 2---<NSThread: 0x6000021f4080>{number = 1, name = main}
2021-02-19 17:57:16.354593+0800 GCD01[3100:147296] 3---<NSThread: 0x6000021f4080>{number = 1, name = main}
2021-02-19 17:57:18.354813+0800 GCD01[3100:147296] 3---<NSThread: 0x6000021f4080>{number = 1, name = main}

2.2.2**队列组dispatch_group**

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
/**
 * 队列组 dispatch_group_notify
 *当所有任务都执行完成之后，才执行dispatch_group_notify block 中的任务
 */
- (void)qpc_dispatchgroup{
    NSLog(@"currentThread---%@",[NSThread currentThread]);
    NSLog(@"group---begin");
    dispatch_group_t group = dispatch_group_create();
    dispatch_queue_t queue = dispatch_queue_create("myqueue", DISPATCH_QUEUE_CONCURRENT);
    dispatch_group_async(group, queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"1---%@",[NSThread currentThread]);
        }
    });
    dispatch_group_async(group, queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"2---%@",[NSThread currentThread]);
        }
    });
    dispatch_group_notify(group, dispatch_get_main_queue(), ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"3---%@",[NSThread currentThread]);
        }
    });

    NSLog(@"group---end");
}

输出结果:
2021-02-19 18:02:46.858071+0800 GCD01[3146:150155] currentThread---<NSThread: 0x6000037681c0>{number = 1, name = main}
2021-02-19 18:02:46.858216+0800 GCD01[3146:150155] group---begin
2021-02-19 18:02:46.858329+0800 GCD01[3146:150155] group---end
2021-02-19 18:02:48.862878+0800 GCD01[3146:150280] 1---<NSThread: 0x60000372d6c0>{number = 7, name = (null)}
2021-02-19 18:02:48.862876+0800 GCD01[3146:150281] 2---<NSThread: 0x60000372c640>{number = 3, name = (null)}
2021-02-19 18:02:50.864822+0800 GCD01[3146:150280] 1---<NSThread: 0x60000372d6c0>{number = 7, name = (null)}
2021-02-19 18:02:50.864823+0800 GCD01[3146:150281] 2---<NSThread: 0x60000372c640>{number = 3, name = (null)}
2021-02-19 18:02:52.865242+0800 GCD01[3146:150155] 3---<NSThread: 0x6000037681c0>{number = 1, name = main}
2021-02-19 18:02:54.865686+0800 GCD01[3146:150155] 3---<NSThread: 0x6000037681c0>{number = 1, name = main}

/**
 * 队列组 dispatch_group_wait
 *当所有任务执行完成之后，才执行 dispatch_group_wait 之后的操作,会阻塞当前线程
 */
- (void)groupWait{
    NSLog(@"currentThread---%@",[NSThread currentThread]);
    NSLog(@"group---begin");
    dispatch_group_t group = dispatch_group_create();
    dispatch_queue_t queue = dispatch_queue_create("myqueue", DISPATCH_QUEUE_CONCURRENT);
    dispatch_group_async(group, queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"1---%@",[NSThread currentThread]);
        }
    });
    dispatch_group_async(group, queue, ^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"2---%@",[NSThread currentThread]);
        }
    });

    dispatch_group_wait(group, DISPATCH_TIME_FOREVER);

    NSLog(@"group---end");
}

输出结果:
2021-02-19 18:09:41.868091+0800 GCD01[3187:153758] currentThread---<NSThread: 0x6000030e4140>{number = 1, name = main}
2021-02-19 18:09:41.868220+0800 GCD01[3187:153758] group---begin
2021-02-19 18:09:43.873508+0800 GCD01[3187:153883] 2---<NSThread: 0x6000030de980>{number = 6, name = (null)}
2021-02-19 18:09:43.873508+0800 GCD01[3187:153881] 1---<NSThread: 0x6000030d7a80>{number = 7, name = (null)}
2021-02-19 18:09:45.875594+0800 GCD01[3187:153881] 1---<NSThread: 0x6000030d7a80>{number = 7, name = (null)}
2021-02-19 18:09:45.875594+0800 GCD01[3187:153883] 2---<NSThread: 0x6000030de980>{number = 6, name = (null)}
2021-02-19 18:09:45.875811+0800 GCD01[3187:153758] group---end

/**
 * 队列组 dispatch_group_enter、dispatch_group_leave
 *当所有任务执行完成之后，才执行 dispatch_group_notify 中的任务。这里的dispatch_group_enter、dispatch_group_leave组合，其实等同于dispatch_group_async
 */
- (void)groupEnterAndLeave{
    NSLog(@"currentThread---%@",[NSThread currentThread]);
    NSLog(@"group---begin");

    dispatch_group_t group = dispatch_group_create();
    dispatch_queue_t queue = dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_DEFAULT, 0);
    dispatch_group_enter(group);
    dispatch_async(queue, ^{
        for (int i = 0; i < 2; ++i) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"1---%@",[NSThread currentThread]);
        }
        dispatch_group_leave(group);
    });

    dispatch_group_enter(group);
    dispatch_async(queue, ^{
        for (int i = 0; i < 2; ++i) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"2---%@",[NSThread currentThread]);
        }
        dispatch_group_leave(group);
    });

    dispatch_group_notify(group, dispatch_get_main_queue(), ^{
        // 等前面的异步操作都执行完毕后，回到主线程.
        for (int i = 0; i < 2; ++i) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"3---%@",[NSThread currentThread]);
        }
    });

    NSLog(@"group---end");
}

输出结果:
2021-02-19 18:17:13.875926+0800 GCD01[3252:157677] currentThread---<NSThread: 0x600000e807c0>{number = 1, name = main}
2021-02-19 18:17:13.876043+0800 GCD01[3252:157677] group---begin
2021-02-19 18:17:13.876179+0800 GCD01[3252:157677] group---end
2021-02-19 18:17:15.876440+0800 GCD01[3252:157767] 2---<NSThread: 0x600000ec5740>{number = 7, name = (null)}
2021-02-19 18:17:15.876486+0800 GCD01[3252:157765] 1---<NSThread: 0x600000ec8600>{number = 8, name = (null)}
2021-02-19 18:17:17.881362+0800 GCD01[3252:157767] 2---<NSThread: 0x600000ec5740>{number = 7, name = (null)}
2021-02-19 18:17:17.881362+0800 GCD01[3252:157765] 1---<NSThread: 0x600000ec8600>{number = 8, name = (null)}
2021-02-19 18:17:19.882660+0800 GCD01[3252:157677] 3---<NSThread: 0x600000e807c0>{number = 1, name = main}
2021-02-19 18:17:21.883995+0800 GCD01[3252:157677] 3---<NSThread: 0x600000e807c0>{number = 1, name = main}

2.2.3**dispatch_barrier_async 栅栏方法**

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
/**
 * 栅栏方法 dispatch_barrier_async
 * 执行完栅栏前面的操作之后，才执行栅栏操作，最后再执行栅栏后边的操作
 */
- (void)barrier{
    dispatch_queue_t queue = dispatch_queue_create("com.hs.dome", DISPATCH_QUEUE_CONCURRENT);
    dispatch_async(queue, ^{
        for (int i = 0; i < 2; ++i) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"1---%@",[NSThread currentThread]);
        }
    });
    dispatch_async(queue, ^{
        for (int i = 0; i < 2; ++i) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"2---%@",[NSThread currentThread]);
        }
    });

    dispatch_barrier_async(queue, ^{
        for (int i = 0; i < 2; ++i) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"barrier---%@",[NSThread currentThread]);
        }
    });

    dispatch_async(queue, ^{
        for (int i = 0; i < 2; ++i) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"3---%@",[NSThread currentThread]);
        }
    });

    dispatch_async(queue, ^{
        for (int i = 0; i < 2; ++i) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"4---%@",[NSThread currentThread]);
        }
    });
}

2.2.4**dispatch_semaphore 信号量**

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
/**
 * semaphore 线程同步
 * 将异步执行任务转换为同步执行任务
 */
- (void)semaphoreSync{
    NSLog(@"currentThread---%@",[NSThread currentThread]);
    NSLog(@"semaphore---begin");
    dispatch_queue_t queue = dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_DEFAULT, 0);
    dispatch_semaphore_t semaphore = dispatch_semaphore_create(0);
    __block int number = 0;
    dispatch_async(queue, ^{
        [NSThread sleepForTimeInterval:2];
        NSLog(@"1---%@",[NSThread currentThread]);

        number = 100;
        dispatch_semaphore_signal(semaphore);
    });

    dispatch_semaphore_wait(semaphore, DISPATCH_TIME_FOREVER);
    NSLog(@"semaphore---end,number = %d",number);
}

三 NSOperation

3.1.1 NSOperation、NSOperationQueue 使用步骤

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
/**
 * 使用 addOperationWithBlock: 将操作加入到操作队列中
 * 将操作加入到操作队列后能够开启新线程，进行并发执行
 */
- (void)addOperationWithBlockToQueue{
    NSOperationQueue *queue = [[NSOperationQueue alloc] init];
    [queue addOperationWithBlock:^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"1---%@", [NSThread currentThread]);
        }
    }];
    [queue addOperationWithBlock:^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"2---%@", [NSThread currentThread]);
        }
    }];
    [queue addOperationWithBlock:^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"3---%@", [NSThread currentThread]);
        }
    }];
    [queue addOperationWithBlock:^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"4---%@", [NSThread currentThread]);
        }
    }];
}

3.1.2 控制串行执行、并发执行

maxConcurrentOperationCount 控制的不是并发线程的数量，而是一个队列中同时能并发执行的最大操作数

  • maxConcurrentOperationCount 默认情况下为-1，表示不进行限制，可进行并发执行。
  • maxConcurrentOperationCount 为1时，队列为串行队列。只能串行执行。
  • maxConcurrentOperationCount 大于1时，队列为并发队列。操作并发执行，当然这个值不应超过系统限制
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
/**
 * 设置 MaxConcurrentOperationCount（最大并发操作数）
 */
- (void)addOperationWithBlockToQueue{
    NSOperationQueue *queue = [[NSOperationQueue alloc] init];
    queue.maxConcurrentOperationCount = 1;//串行执行
    [queue addOperationWithBlock:^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"1---%@", [NSThread currentThread]);
        }
    }];
    [queue addOperationWithBlock:^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"2---%@", [NSThread currentThread]);
        }
    }];
    [queue addOperationWithBlock:^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"3---%@", [NSThread currentThread]);
        }
    }];
    [queue addOperationWithBlock:^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"4---%@", [NSThread currentThread]);
        }
    }];
}

总结:

当最大并发操作数为1时，操作是按顺序串行执行的，并且一个操作完成之后，下一个操作才开始执行。当最大操作并发数为2时，操作是并发执行的，可以同时执行两个操作。而开启线程数量是由系统决定的，不需要我们来管理。

3.1.3 addDependency操作依赖

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
- (void)addDependency{
    NSOperationQueue *queue = [[NSOperationQueue alloc] init];
    NSBlockOperation *op1 = [NSBlockOperation blockOperationWithBlock:^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"1---%@", [NSThread currentThread]);
        }
    }];
    NSBlockOperation *op2 = [NSBlockOperation blockOperationWithBlock:^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"2---%@", [NSThread currentThread]);
        }
    }];
    [op2 addDependency:op1];// 让op2 依赖于 op1，则先执行op1，在执行op2
    [queue addOperation:op1];
    [queue addOperation:op2];
}
打印结果:
2021-02-20 15:21:40.251808+0800 GCD01[4133:192904] 1---<NSThread: 0x600003adad80>{number = 5, name = (null)}
2021-02-20 15:21:42.252554+0800 GCD01[4133:192904] 1---<NSThread: 0x600003adad80>{number = 5, name = (null)}
2021-02-20 15:21:44.257346+0800 GCD01[4133:192903] 2---<NSThread: 0x600003ad29c0>{number = 7, name = (null)}
2021-02-20 15:21:46.257638+0800 GCD01[4133:192903] 2---<NSThread: 0x600003ad29c0>{number = 7, name = (null)}

3.1.4 NSOperation 优先级

1
2
3
4
5
6
7
8
// 优先级的取值
typedef NS_ENUM(NSInteger, NSOperationQueuePriority) {
    NSOperationQueuePriorityVeryLow = -8L,
    NSOperationQueuePriorityLow = -4L,
    NSOperationQueuePriorityNormal = 0,
    NSOperationQueuePriorityHigh = 4,
    NSOperationQueuePriorityVeryHigh = 8
};

设置优先级后并没有达到想要的效果,该属性还待解答.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
- (void)addDependency_queuePriority{
    NSOperationQueue *queue = [[NSOperationQueue alloc] init];
    NSInvocationOperation *op1 = [[NSInvocationOperation alloc] initWithTarget:self selector:@selector(task1) object:nil];
    NSInvocationOperation *op2 = [[NSInvocationOperation alloc] initWithTarget:self selector:@selector(task2) object:nil];
    NSInvocationOperation *op3 = [[NSInvocationOperation alloc] initWithTarget:self selector:@selector(task3) object:nil];
    NSInvocationOperation *op4 = [[NSInvocationOperation alloc] initWithTarget:self selector:@selector(task4) object:nil];
    op4.queuePriority = NSOperationQueuePriorityVeryHigh;
    op1.queuePriority = NSOperationQueuePriorityLow;

    [queue addOperation:op1];
    [queue addOperation:op2];
    [queue addOperation:op3];
    [queue addOperation:op4];
}
打印结果:
2021-02-20 15:48:48.168577+0800 GCD01[4346:208620] 4---<NSThread: 0x6000004729c0>{number = 4, name = (null)}
2021-02-20 15:48:48.168580+0800 GCD01[4346:208625] 1---<NSThread: 0x600000466000>{number = 3, name = (null)}
2021-02-20 15:48:48.168581+0800 GCD01[4346:208622] 2---<NSThread: 0x600000457a40>{number = 5, name = (null)}
2021-02-20 15:48:48.168577+0800 GCD01[4346:208626] 3---<NSThread: 0x600000465880>{number = 8, name = (null)}
2021-02-20 15:48:50.173404+0800 GCD01[4346:208622] 2---<NSThread: 0x600000457a40>{number = 5, name = (null)}
2021-02-20 15:48:50.173404+0800 GCD01[4346:208626] 3---<NSThread: 0x600000465880>{number = 8, name = (null)}
2021-02-20 15:48:50.173404+0800 GCD01[4346:208625] 1---<NSThread: 0x600000466000>{number = 3, name = (null)}
2021-02-20 15:48:50.173404+0800 GCD01[4346:208620] 4---<NSThread: 0x6000004729c0>{number = 4, name = (null)}

3.1.4 NSOperation线程间通信

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
/**
 * 线程间通信
 */
- (void)communication{
    NSOperationQueue *queue = [[NSOperationQueue alloc] init];
    [queue addOperationWithBlock:^{
        for (int i = 0; i < 2; i++) {
            [NSThread sleepForTimeInterval:2];
            NSLog(@"1---%@", [NSThread currentThread]);
        }
        //返回主线程
        [[NSOperationQueue mainQueue] addOperationWithBlock:^{
            for (int i = 0; i < 2; i++) {
                [NSThread sleepForTimeInterval:2];
                NSLog(@"2---%@", [NSThread currentThread]);
            }
        }];
    }];
}

四 多线程安全隐患-线程同步

常见的线程同步技术:加锁

iOS常见加锁方案

  • OSSpinLock
  • os_unfair_lock

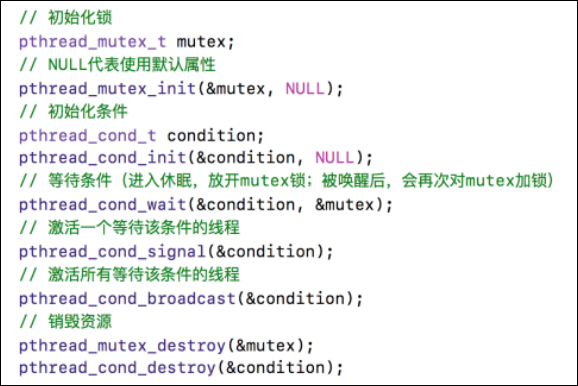

  • pthread_mutex
  • dispatch_semaphore
  • dispatch_queue(DISPATCH_QUEUE_SERIAL)
  • NSLock
  • NSRecursiveLock

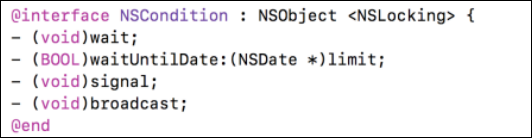

  • NSCondition

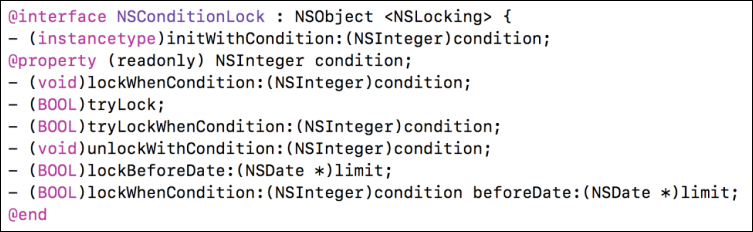

  • NSConditionLock
  • @synchronized

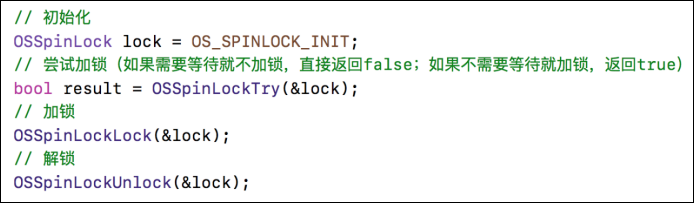

4.1 OSSpinLock

OSSpinLock叫做”自旋锁”，等待锁的线程会处于忙等（busy-wait）状态，一直占用着CPU资源

目前已经不再安全，可能会出现优先级反转问题

如果等待锁的线程优先级较高，它会一直占用着CPU资源，优先级低的线程就无法释放锁

需要导入头文件#import <libkern/OSAtomic.h>

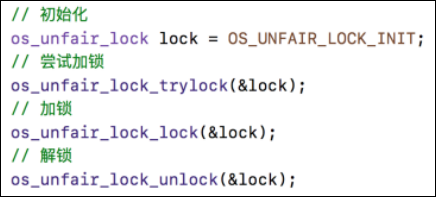

4.2 os_unfair_lock

os_unfair_lock用于取代不安全的OSSpinLock ，从iOS10开始才支持

从底层调用看，等待os_unfair_lock锁的线程会处于休眠状态，并非忙等

需要导入头文件#import <os/lock.h>


4.3 pthread_mutex (normal)

mutex叫做”互斥锁”，等待锁的线程会处于休眠状态

需要导入头文件#import <pthread.h>


4.4 pthread_mutex (recursive) 递归锁


4.5 pthread_mutex (condition) 条件


4.6 NSLock/NSRecursiveLock

NSLock是对mutex普通锁的封装

NSRecursiveLock也是对mutex递归锁的封装，API跟NSLock基本一致



4.7 NSCondition

NSCondition是对mutex和cond的封装


4.8 NSConditionLock

NSConditionLock是对NSCondition的进一步封装，可以设置具体的条件值


4.9 dispatch_semaphore

semaphore叫做”信号量”

信号量的初始值，可以用来控制线程并发访问的最大数量

信号量的初始值为1，代表同时只允许1条线程访问资源，保证线程同步


4.10 GCD串行队列


4.11 @synchronized

@synchronized是对mutex递归锁的封装

@synchronized(obj)内部会生成obj对应的递归锁，然后进行加锁、解锁操作


4.2 线程同步性能比较

性能从高到低排序

  1. os_unfair_lock
  2. OSSpinLock
  3. dispatch_semaphore
  4. pthread_mutex
  5. dispatch_queue(DISPATCH_QUEUE_SERIAL)
  6. NSLock
  7. NSCondition
  8. pthread_mutex(recursive)
  9. NSRecursiveLock
  10. NSConditionLock
  11. @synchronized

五 读写方案 (多读单写)

  • 同一时间，只能有1个线程进行写的操作
  • 同一时间，允许多个线程进行读的操作
  • 同一时间，不允许既有写的操作，又有读的操作

现有解决方案:

  1. pthread_rwlock：读写锁
  2. dispatch_barrier_async：异步栅栏调用
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
- (void)viewDidLoad {
    [super viewDidLoad];

    pthread_rwlock_init(&_lock, NULL);
    dispatch_queue_t queue = dispatch_get_global_queue(0, 0);
    for (int i = 0; i < 10; i++) {
        dispatch_async(queue, ^{
            [self read];
        });

        dispatch_async(queue, ^{
            [self write];
        });
    }
}

- (void)read{
    pthread_rwlock_rdlock(&_lock);
    sleep(1);
    NSLog(@"%s",__func__);
    pthread_rwlock_unlock(&_lock);
}

- (void)write{
    pthread_rwlock_wrlock(&_lock);
    sleep(1);
    NSLog(@"%s",__func__);
    pthread_rwlock_unlock(&_lock);
}

// pthread_rwlock_destroy 是pthread锁，要销毁
- (void)dealloc{
    pthread_rwlock_destroy(&_lock);
}

打印结果:
2021-02-20 16:31:56.110128+0800 GCD01[4628:232022] -[ViewController read]
2021-02-20 16:31:56.110128+0800 GCD01[4628:232025] -[ViewController read]
2021-02-20 16:31:57.115415+0800 GCD01[4628:232023] -[ViewController write]
2021-02-20 16:31:58.117225+0800 GCD01[4628:232024] -[ViewController write]
2021-02-20 16:31:59.119190+0800 GCD01[4628:232026] -[ViewController read]
2021-02-20 16:32:00.121009+0800 GCD01[4628:232028] -[ViewController write]
2021-02-20 16:32:01.123432+0800 GCD01[4628:232030] -[ViewController read]
2021-02-20 16:32:02.127358+0800 GCD01[4628:232031] -[ViewController write]
2021-02-20 16:32:03.130017+0800 GCD01[4628:232032] -[ViewController read]
2021-02-20 16:32:04.133641+0800 GCD01[4628:232033] -[ViewController write]
2021-02-20 16:32:05.134574+0800 GCD01[4628:232034] -[ViewController read]
2021-02-20 16:32:06.136287+0800 GCD01[4628:232035] -[ViewController write]
2021-02-20 16:32:07.139924+0800 GCD01[4628:232036] -[ViewController read]
2021-02-20 16:32:08.144879+0800 GCD01[4628:232037] -[ViewController write]
2021-02-20 16:32:09.150167+0800 GCD01[4628:232038] -[ViewController read]
2021-02-20 16:32:10.153798+0800 GCD01[4628:232039] -[ViewController write]
2021-02-20 16:32:11.158837+0800 GCD01[4628:232040] -[ViewController read]
2021-02-20 16:32:12.161323+0800 GCD01[4628:232041] -[ViewController write]
2021-02-20 16:32:13.165552+0800 GCD01[4628:232042] -[ViewController read]
2021-02-20 16:32:14.169961+0800 GCD01[4628:232043] -[ViewController write]
- (void)viewDidLoad {
    [super viewDidLoad];

    self.queue = dispatch_queue_create("rw_queue", DISPATCH_QUEUE_CONCURRENT);
    for (int i = 0; i < 10; i++) {
        dispatch_async(_queue, ^{
            [self read];
        });
        dispatch_async(_queue, ^{
            [self read];
        });
        dispatch_async(_queue, ^{
            [self read];
        });
        dispatch_barrier_sync(self.queue, ^{
            [self write];
        });
    }
}

- (void)read{
    sleep(1);
    NSLog(@"%s",__func__);
}

- (void)write{
    sleep(1);
    NSLog(@"%s",__func__);
}

iOS多线程

https://qpc2015.github.io/2020/07/02/iOS多线程/

作者

布谷

发布于

2020-07-02

更新于

2022-07-04

许可协议

#

评论

关注我

链接

分类

最新文章

归档

标签

AFNetworking1
ES61
Markdown1
NSData Byte1
React1
crash1
flutter1
hexo博客1
iOS9
iOS逆向1
jenkins1
node1
swift1
vue1
串1
小程序1
微信小程序1
栈1
树1
物联网1
线性表1
队列1
×
